Ever wondered how the lights stay on in massive stadiums, bustling hospitals, or sprawling IT parks here in Bengaluru, even with their complex power demands? The unsung hero behind this reliability is Load Flow Analysis. It's not just a fancy term; it's the backbone of modern power systems, ensuring everything runs smoothly and preventing catastrophic power failures.

What Exactly is Load Flow Analysis?

Imagine you're an architect designing a new, intricate building. You wouldn't just guess how much weight each beam can hold, right? You'd perform detailed calculations. Load Flow Analysis is similar, but for electricity. It's a powerful computational tool used by electrical engineers to study how electrical power flows through every part of a power system under various operating conditions. Think of it as a detailed "stress test" for your electrical network. It calculates crucial parameters like voltage, current, and power factor at every bus (connection point) and along every line (cable) in the system.

Why is Load Flow Analysis the Backbone of Modern Power Systems?

In today's world, complex projects, especially in the MEP (Mechanical, Electrical, and Plumbing) sector, demand uninterrupted power. A power failure in a hospital could be life-threatening, and in a data center, it could mean millions in losses. This is where Load Flow Analysis shines.

• Reliability: It helps engineers ensure the system can handle its expected electrical load without overheating or voltage drops.
• Efficiency: By identifying areas of power loss, it allows for optimized designs, leading to significant energy savings and reduced operational costs.
• Safety: It ensures that all equipment operates within its safe limits, preventing overloads that could lead to fires or equipment damage.
• Expansion Planning: As cities like Bengaluru grow, so do their power needs. Load Flow Analysis is crucial for planning future expansions and upgrades without disrupting existing services.
• Fault Analysis: While not directly fault analysis, load flow results are fundamental inputs for understanding how a system will behave during faults.

Steps Involved in Conducting a Load Flow Study

Performing a Load Flow Study might sound daunting, but it follows a logical process:

1. Data Collection: Gathering all the essential information about the electrical network. This includes:
   • Single-line diagram of the entire system.
   • Ratings and specifications of transformers, generators, cables, and protective devices.
   • Anticipated load demands at various points.
2. System Modeling: Translating the physical network into a mathematical model using specialized software. Each component (generator, transformer, load) is represented by its electrical characteristics.
3. Solving the Equations: The software then solves a complex set of non-linear equations to determine the voltage, current, and power flow at every point in the system.
4. Analysis of Results: Engineers meticulously examine the output data, looking for:
   • Voltage Violations: Are voltages within acceptable limits? Too high or too low can damage equipment.
   • Overloaded Equipment: Are any cables, transformers, or switchgear carrying more current than they're rated for?
   • Power Factor Issues: Is the system operating efficiently? Poor power factor leads to wasted energy.
5. Recommendations and Optimization: Based on the analysis, recommendations are made for improvements, such as upsizing cables, adding capacitors for power factor correction, or adjusting transformer tap settings.

Applications of Load Flow Analysis in Various Sectors

The versatility of Load Flow Analysis makes it indispensable across numerous industries:

• Commercial Buildings (MEP): From shopping malls to high-rise offices, ensuring stable power for lighting, HVAC, elevators, and IT infrastructure.
• Industrial Plants: Optimizing power distribution for heavy machinery, motors, and automation systems, preventing costly downtime.
• Healthcare Facilities: Guaranteeing uninterrupted power for critical medical equipment, operating theaters, and life support systems.
• Data Centers: Maintaining precise power quality and availability for servers and cooling systems, where even a momentary flicker can be catastrophic.
• Renewable Energy Integration: Analyzing how solar farms or wind turbines integrate into the existing grid without causing instability.
• Smart Cities: Planning robust electrical grids that can handle the dynamic demands of smart technologies and electric vehicle charging stations.

Challenges and Solutions in Load Flow Analysis

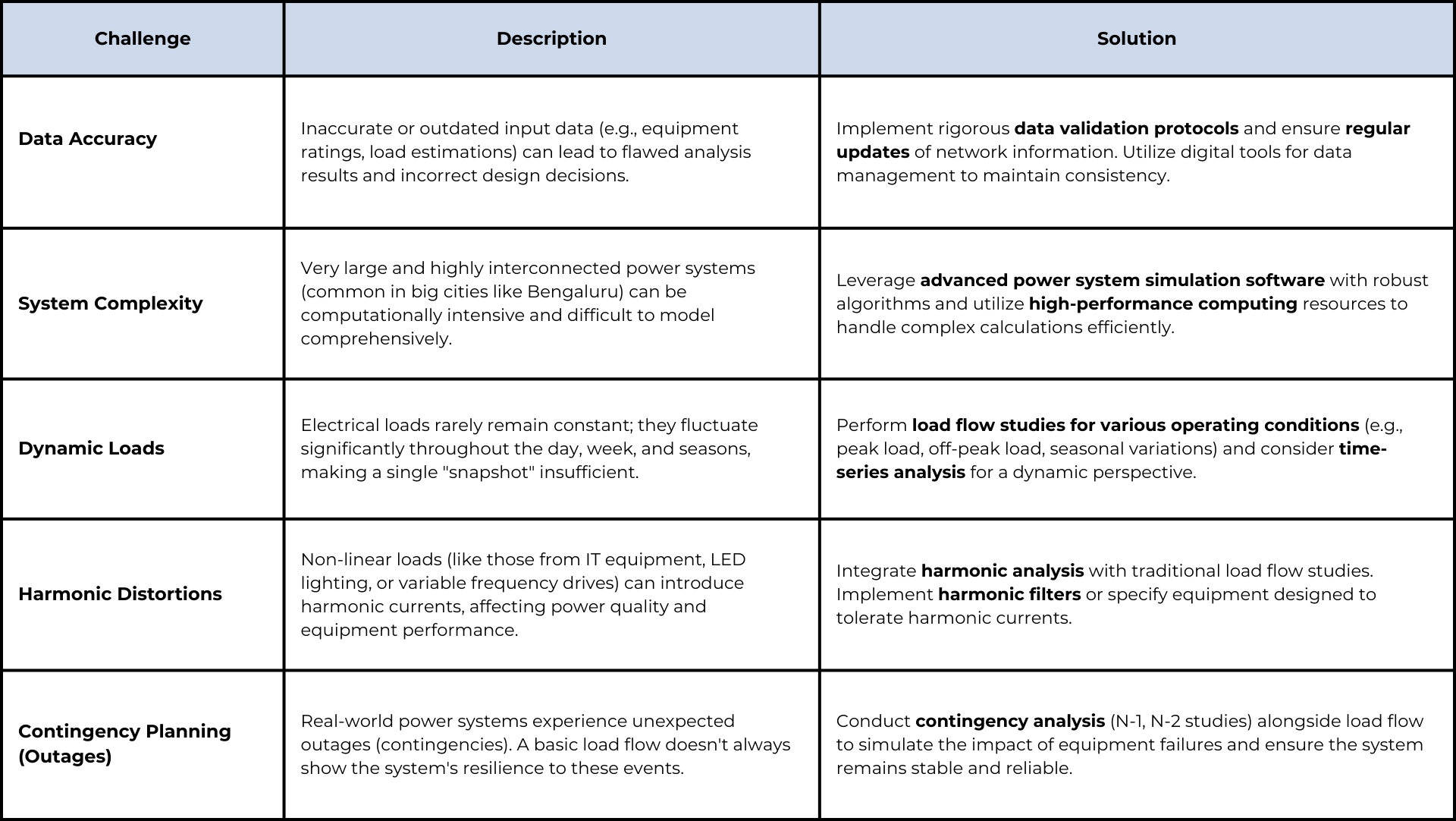

While incredibly powerful, Load Flow Analysis isn't without its challenges, especially in large, dynamic systems. Fortunately, engineers have developed effective solutions to overcome them.

Conclusion

Load Flow Analysis is more than just an engineering exercise; it's a critical investment in the reliability, efficiency, and safety of any complex electrical project. For MEP consultants and project managers, understanding its importance is key to delivering successful, future-proof installations. By proactively identifying potential issues and optimizing power distribution, Load Flow Analysis truly prevents power failures, keeping our modern world brightly lit and fully functional.
